深圳證券交易所典藏中心是一個用于進行交流展覽用的展廳，
其展品主要以字畫為主。因此在展柜的功能配置上偏重于對紙質
展品的展示與保護。
為減少眩光對參觀者的視覺影響，同時逼真呈現畫作的色彩，
我們使用德國“SCHOTT”的 AMIRAN 低反射玻璃。配合德國
“ERCO”LED 軌道洗墻燈，達到良好的展示效果。照明控制部
分融入展廳整體 DALI 控制系統中，便捷高效。
在環境控制方面，用 MiniClima 恒濕系統對展廳的所有展柜
空間進行統一控制。恒濕系統則被安裝于遠離展廳的設備間，以
減小設備的工作噪音對參觀者的影響，并方便日常的設備管理與
維護。
全館的展柜采用我們最新升級的 TCFA 電動開門系統及電動
掛畫系統。
在現場安裝過程中我們克服了諸多困難。比如：在沒有運輸
通道的情況下，我們將 3800*1750mm 尺寸的玻璃從建筑幕墻外
在吊裝到展廳所在的 8 樓；又如展廳的架空地板承重能力不滿足
安裝展柜的條件；恒濕系統的管線從設備間布置到展廳的管路遇
到的諸多建筑結構的阻礙等困難，都得到圓滿解決。

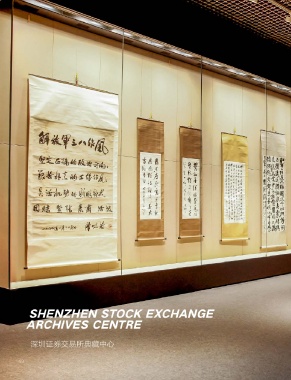

Shenzhen Stock Exchange (SZSE) Archives Centre, which mainly houses
calligraphy and painting exhibits, was designed for exchange exhibitions, so the
cases deployed in it are specifically constructed for the display and protection of
paper exhibits.
We use SCHOTT AMIRAN anti-reflection glass from Germany to reduce the visual
impact caused by glaring lights and simultaneously to restore the true colors of
paintings. ERCO LED track wall washers are also used for a better performance.
A lighting control module is integrated into the DALI control system of the whole
showroom to allow for convenience and improved efficiency.
The MiniClima humidity-constant system allows for the unified control of all
display cases in the showroom. This system was installed in an equipment room a
distance from the showroom to minimize distractions caused by work noise and to
facilitate the daily management & maintenance of equipment.
SHENZHEN STOCK EXCHANGE A newly updated TCFA electronic access system and electronic lifting system
have been applied in all cases.
ARCHIVES CENTRE Many difficulties were overcome during installation. For instance, the following
problems were successfully addressed: the hoisting of 3800*1750mm glass from
outside the building's curtain wall to the 8th floor, where the showroom does not
have any passageway; the bearing capacity of the raised flooring in the showroom
深圳證券交易所典藏中心 failed to secure the installation of display cases; the humidity-constant system's
pipeline from the equipment room to the showroom was blocked by many building
structures, etc.
